Description
| MODEL | TERMINATION | HORSEPOWER RANGE | SPEED | WEIGHT | LENGTH | AIR INLET SIZE | DRILL DIAMETER CAPACITY | EXHAUST | |
|---|---|---|---|---|---|---|---|---|---|
| 1/min | kg | mm | in | mm | |||||
| 15L1401-37 | 5/32″ Chuck | 0.3 hp | (0.22 kW) | 0.45 | 157.5 | 1/4 | 6.4 | Front | ||
| 15L1470-37 | 5/32″ Chuck | 0.3 hp | (0.22 kW) | 12000 | 0.54 | 175.3 | 1/4 | 6.4 | Rear | |
| 15L1471-37 | 5/32″ Chuck | 0.3 hp | (0.22 kW) | 0.54 | 175.3 | 1/4 | 6.4 | Rear | ||
| 15L1487-32 | 1/4″-28 i | 0.3 hp | (0.22 kW) | 0.54 | 203.2 | 1/4 | 6.4 | Rear | ||
| 15L1487-36 | 1/4″ Collet | 0.3 hp | (0.22 kW) | 0.54 | 203.2 | 1/4 | 6.4 | Rear | ||
| 15L1487-38 | 1/4″ Chuck | 0.3 hp | (0.22 kW) | 0.68 | 203.2 | 1/4 | 6.4 | Rear | ||
| 15L1488-36 | 1/4″ Collet | 0.3 hp | (0.22 kW) | 2400 | 0.73 | 221 | 1/4 | 6.4 | Rear | |
| 15L1488-38 | 1/4″ Chuck | 0.3 hp | (0.22 kW) | 2400 | 0.68 | 203.2 | 1/4 | 6.4 | Rear | |
| 15L1489-32 | 1/4″-28 i | 0.3 hp | (0.22 kW) | 0.73 | 221 | 1/4 | 6.4 | Rear | ||
| 15L1489-36 | 1/4″ Collet | 0.3 hp | (0.22 kW) | 3600 | 0.73 | 221 | 1/4 | 6.4 | Rear | |

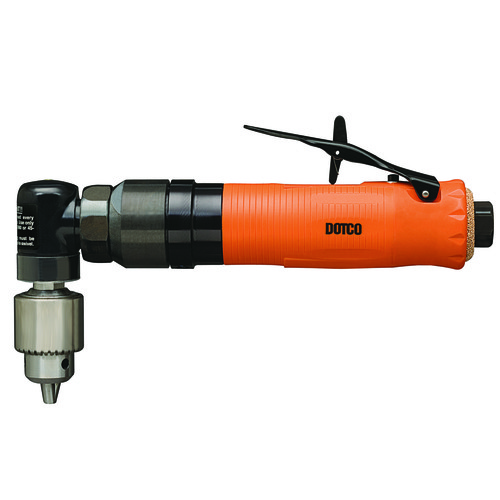

| 15L1489-38 | 1/4″ Chuck | 0.3 hp | (0.22 kW) | 3600 | 0.68 | 203.2 | 1/4 | 6.4 | Rear | |
| 15L1489-51 | 3/8″ Chuck | 0.3 hp | (0.22 kW) | 0.68 | 203.2 | 1/4 | 6.4 | Rear |
